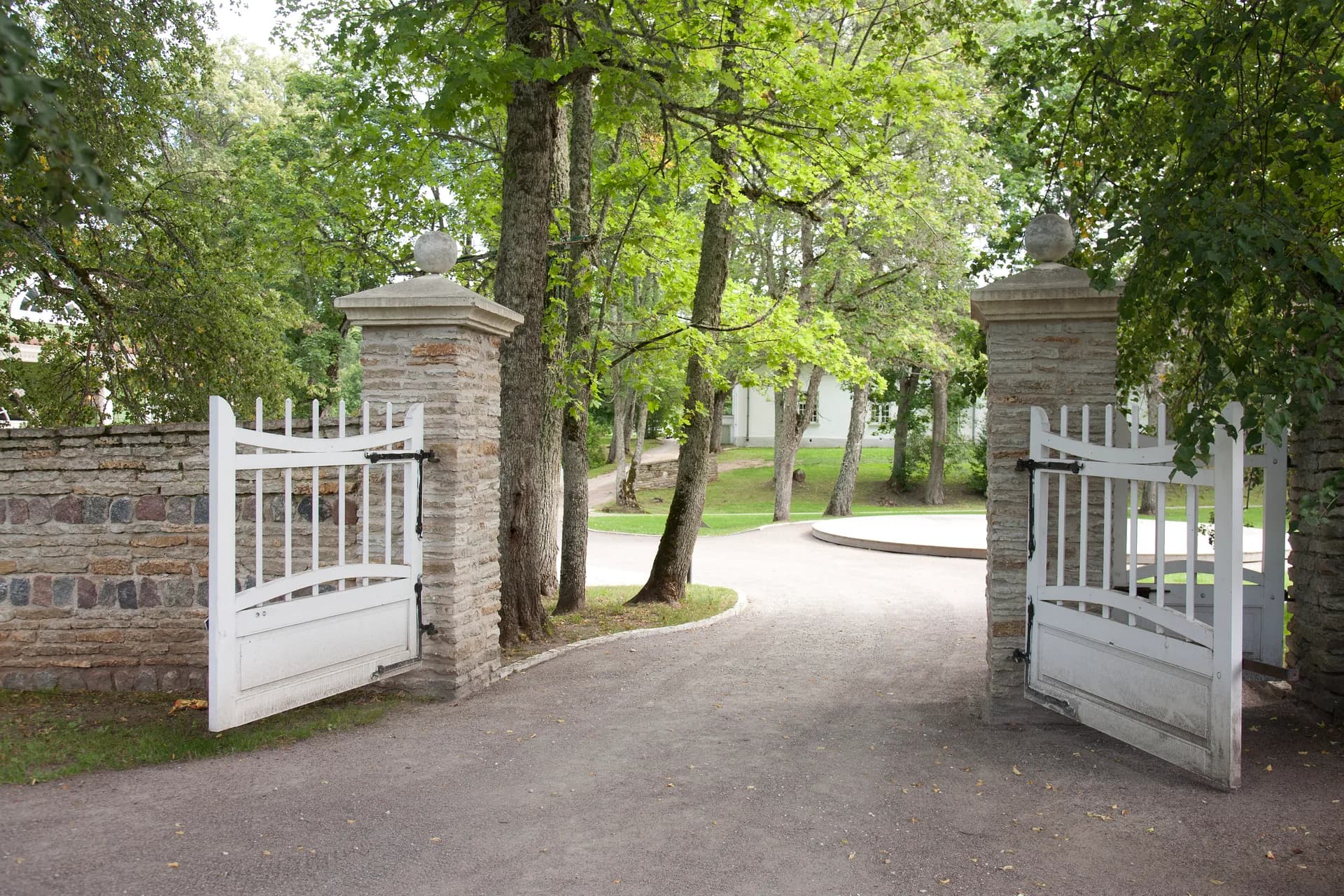

Automated gates divide into swing and slide, and virtually every fault, part and diagnostic step follows from which one you have. A swing gate pivots on hinges at one post and is driven by either a linear actuator — a ram that extends and retracts between the post and the gate leaf — or an articulated arm that folds. The load is carried entirely by the hinges and the post, which means post movement, hinge wear and gate leaf sag account for most mechanical problems.

A slide gate travels laterally, either rolling on wheels along a track set into the driveway, or cantilevered on rollers mounted to posts so nothing crosses the driveway surface. It is driven by a gearbox that engages a toothed rack bolted along the gate frame. The load is carried by the rollers and the rack, and most mechanical faults are debris in the track, worn rollers, and rack alignment or engagement depth with the drive gear.

The operator on either type contains the same basic elements: a motor and gearbox, a control board, a means of detecting the travel limits, and a way of detecting obstruction. Limits are set either by physical limit switches struck by a cam or by a magnetic sensor reading a magnet on the gate, and either can drift or fail, producing a gate that stops short, overruns, or refuses to move at all.

Power arrangement differs from a garage door too. Many gate operators are solar-supported with a battery, and a great many faults reported as control failures turn out to be a battery at end of life or a panel that has become shaded or dirty. A gate that works fine in the afternoon and poorly first thing in the morning is describing a charging problem rather than a control problem.

Alignment leads by a distance, and on a swing gate that nearly always traces back to the post. Gate posts are set in ground that moves, and a post that has shifted even slightly changes the geometry between the hinge and the actuator mounting. The symptom is a gate that binds partway through its swing, drags at the latch post, or triggers an obstruction reverse at the same point every time. Fixing the operator without correcting the post is treating the alarm rather than the fire.

On a slide gate the equivalent is the track and the rack. A ground track collects gravel, leaves and debris, and a wheel riding over debris jumps and loads the drive gear. The rack, bolted along the gate frame in sections, works loose at the joints or sits at the wrong engagement depth with the pinion, and the result is a gate that judders, skips teeth, or stops with the motor still running.

Access control failures are the second family and they are usually peripheral rather than central. Keypads and readers are outdoors and are exposed to weather at the exact point where their wiring enters an enclosure; remotes lose pairing or run down; and the low-voltage cable runs between the gate and the operator flex on every cycle and eventually break inside their insulation. That last one produces the classic intermittent fault that works when a technician is standing there and fails an hour later.

Third is power. Between mains supply issues, failing batteries, shaded or dirty solar panels and charge controllers at end of life, supply problems account for a surprising share of what gets reported as a dead control board. The diagnostic order — supply, then board — matters because boards are expensive and batteries are not.

Fourth is the safety devices themselves. Photo-eyes across a driveway are struck by vehicles and knocked out of alignment; safety edges get damaged; and in-ground loops are cut by driveway work or degrade where water gets into the sealant. A gate that reverses immediately on every attempt is far more often a triggered safety device than a failed motor.

An automated gate is a large mass moving horizontally, frequently in an area where people walk and children play, and the safety requirements that apply to gate operators are correspondingly demanding. The industry standard governing them classifies gate operators by where they are used — residential, commercial, industrial and restricted access — and sets what protection each installation must have.

The central requirement is that a gate cannot rely on the operator's own obstruction sensing alone. There must be external entrapment protection devices as well, typically photo-eyes across the opening, safety edges on the leading and trailing edges of the gate, or both, positioned to cover the areas where entrapment can occur. That includes the reverse direction and the gap between the gate and any post or wall at the open position, which is the pinch point people most often overlook.

Physical guarding matters too. Exposed rollers, the rack and pinion engagement, and the gap between a sliding gate and its fence line are all entrapment points that should be guarded, and the gate must have positive stops so it cannot travel beyond its intended limits. Warning signage on both sides of the gate is part of the specification rather than optional.

The reason to be direct about this is that gate safety devices are the components most often bypassed, because when one starts nuisance-tripping it is quicker to disconnect it than to diagnose it. A gate whose photo-eyes have been unplugged operates perfectly and has lost its primary means of not closing on somebody. On every gate visit we check what protection is fitted, whether it functions, and whether anything has been bypassed, and we will tell you plainly if it has.
